Single Input Kit eLynx Internal Product ID – 20240521
To submit a warranty claim for your single input kit, please email us at hardwareorders@elyxtech.com
Include details about the issue you are experiencing and the estimated date of purchase. Our team will respond within a few business days.

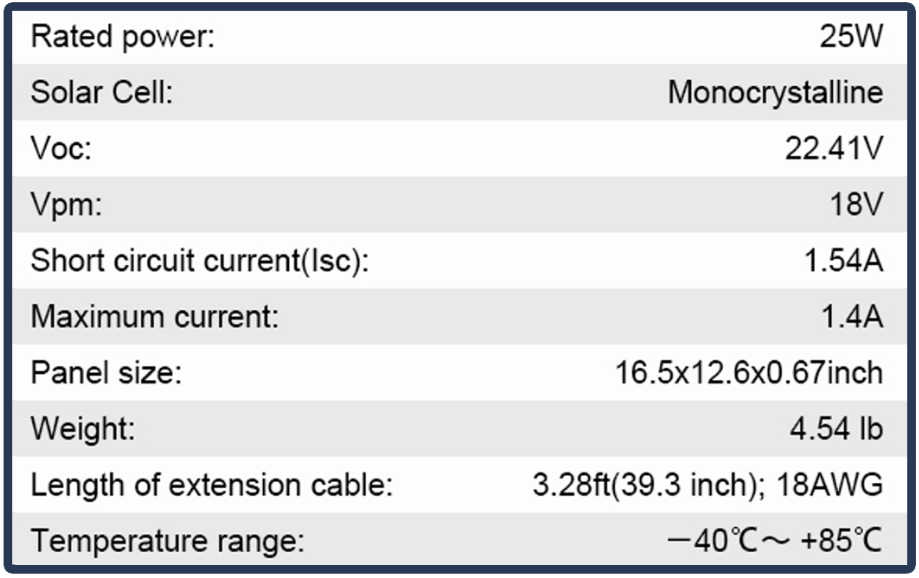

Solar Panel eLynx Internal Product ID – WTER2312
Warranty: 5 years
Solar Panel Bracket eLynx Internal Product ID – BRKT0209
Material: Aluminum
Overall Dimensions: 15”x3”x3.5”
Mounts to pole using standard 2” U-bolt (included)
Warranty: 1 year
Enclosure eLynx Internal Product ID – WTER2310
Protection rating: IP67 Waterproof & Weatherproof
Size: 6”x10.5”x14.6” Weight: 5 lbs.
Made of: Acrylonitrile Butadiene Styrene Plastic (ABS) provides exceptional resistance against impact and ensures excellent electrical insulation.
Warranty: 1 year
Enclosure Mount Kit eLynx Internal Product ID – WTER2311
Finish: Stainless Steel Size: 9.8"x1.9" Weight: 14.4 oz
Adjustment: Adjustable 1.97"x7.87"(50-200mm) clamps for mounting various poles between this diameter range.
Warranty: 1 year
Modem eLynx Internal Product ID – MDEM1317
Multi-Carrier, SIM 1 Gigabit RJ-45 Ethernet Port (POE), USB 2.0 Micro-B Connector, 2 SMA antenna connectors (cellular, diversity)
Dimensions: 4”x 3” x 1”
Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Warranty: 3 years
Modem Mounting Bracket eLynx Internal Product ID – BRKT0223
RoHS Status: RoHS3 Compliant ECCN: EAR99 Includes: DIN rail clip, mounting bracket and screws
Warranty: 1 year
Lithium Battery eLynx Internal Product ID – WTER2322
Product Dimensions: 3.3"D x 7.2"W x 6.9"H
Size: 20Ah Voltage: 12.8V Weight: 4.85 lbs. Battery Cell Composition: Lithium Phosphate
Warranty: 3 years
Charge Controller eLynx Internal Product ID – WTER2315
Dual USB outputs
Dimensions: 5”x 3”x 1” Weight: 5 oz
Voltage: 24V Charge Current: 30A
Warranty: 1 year
Antenna eLynx Internal Product ID – ANTE0119
Style: Omni Directional
Environmental Rating: IP 67 Waterproof
RoHS Status RoHS Compliant
Frequency Range: 600~6000 MHz, Peak Gain: 2.5 dBi
Connectors: Dual integrated 2x SMA Male Plugs Coax
Length: 6.5 ft
Mounting: Magnetic Weight: 5 oz
Works on all 4G/5G Networks For optimum performance this antenna should be mounted through a flat, horizontal metal surface.
Warranty: 1 year
Pressure Transmitter eLynx Internal Product ID – WTER2309
Factory Calibrated, Multiple Process Connection Options, OEM/ODM Available IP65 UL listed, RoHS, and CE compliant
PSI Rating: 300 Range 0-20bar G Power 5V Output 0.5-4.5V
Process connection:1/4NPT male
Electrical connector: Direct cable outlet 5 meter
Warranty: 1 year
*This is the standard pressure transmitter shipped with the single input kit. Please contact eLynx for non-standard Pressure Transmitter information.
